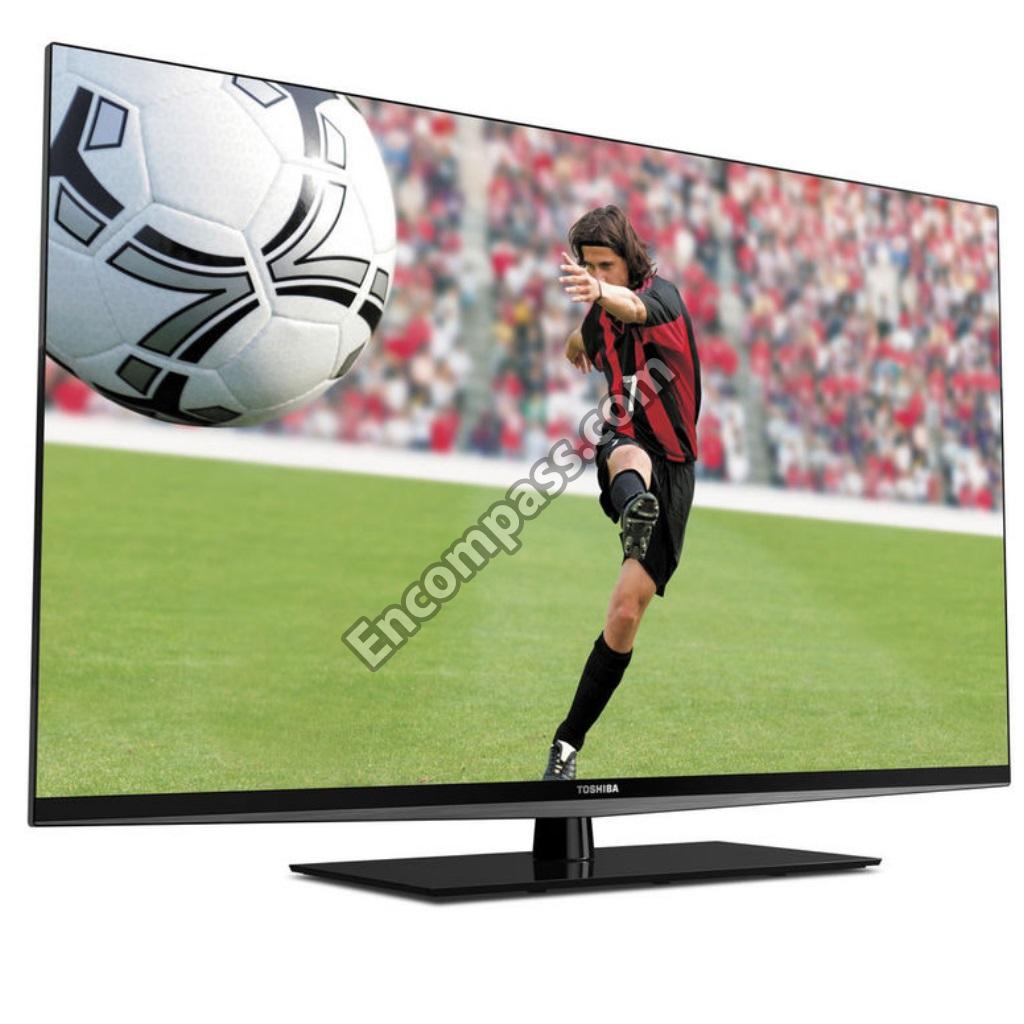

47L6200UB Toshiba Tv, 47" 3D Led B-stock Replacement Parts
Manufacturer
Model Number
47L6200UB
Description
Tv, 47" 3D Led B-stock
Parts List
| Category | Part Number | Description | Demand | Availability |
|---|---|---|---|---|
| Base | 75030887 | Toshiba Base Assy, Sw, Stand, Apr Schematic Location: E120 | No | |
| Bracket, Flange, Blade | 75030851 | Toshiba Bracket Assy, Stand, Sw, Schematic Location: E160 | No | |
| Cables, PCB Cable | 75030629 | Toshiba Cable, Controler, Dc19ak0 Schematic Location: E484 | No | |
| Cables, PCB Cable | 75030627 | Toshiba Cable, Pin Jack, Componen Schematic Location: E480 | No | |
| Cables, PCB Cable | 75034416 | Toshiba Cable, T-con, Nbx5000070i Schematic Location: PENDING | No | |
| 75030644 | Toshiba Carton Box, Hb4rc47002i Schematic Location: E500 | No | ||
| Clip | 75030643 | Toshiba Clip, Core, Dc15200140i Schematic Location: E322 | No | |
| Power Cord | 75030623 | Toshiba Cord, Power, Ga05009040i Schematic Location: E320 | No | |
| Cover,Cap | 75030886 | Toshiba Cover Assy, Bac, Aprb47t0 Schematic Location: E110 | No | |
| 75030849 | Toshiba I/o Plate, Bottom, Farb55 Schematic Location: E140 | No | ||
| Plate | 75030850 | Toshiba I/o Plate, Side, Aprb55t0 Schematic Location: E142 | No | |
| Jack | 75034010 | Toshiba Jack, Optical Audio, Dc23 Schematic Location: JAO | No | |
| Plate | 75030614 | Toshiba Key Plate Assy, Aprb55t02 Schematic Location: E130 | No | |
| LCD Panel | 75029442 | Toshiba Lcd Panel, Lc470eug-pef1 Schematic Location: E300 | No | |
| Lens | 75030854 | Toshiba Lens, Fpt-p100, Dc57c0001 Schematic Location: E470 | No | |
| Guide | GMA300007012 | Toshiba Manual, Quick Setup Guide Schematic Location: E410 | No | |
| 75030626 | Toshiba Manual, Resource Guide, H Schematic Location: E430 | No | ||
| Circuit Board | 75030647 | Toshiba Packing, Eps Form, Board, Schematic Location: E512 | No | |
| 75030646 | Toshiba Packing, Eps Form, Bottom Schematic Location: E511 | No | ||
| 75030645 | Toshiba Packing, Eps Form, Top, F Schematic Location: E510 | No | ||
| 75030617 | Toshiba Pc Boad Assy, Ir/b, 454C3 Schematic Location: E260 | No | ||
| 75030639 | Toshiba Pc Boad Assy, Main, 461C5 Schematic Location: E200 | No | ||
| 75030616 | Toshiba Pc Boad Assy, Power, Pk10 Schematic Location: E250 | No | ||
| 75030619 | Toshiba Pc Boad Assy, Wifi Pk2982 Schematic Location: E264 | No | ||
| Circuit Board | 75030691 | Toshiba Pc Board Assy, T-con, 687 Schematic Location: E300Z | No | |
| 75030885 | Toshiba Piece Assy, Bottom, Aprc4 Schematic Location: E108 | No | ||
| 75030845 | Toshiba Piece Cap, Bottom Left, F Schematic Location: E104 | No | ||
| 75030846 | Toshiba Piece Cap, Bottom Right, Schematic Location: E106 | No | ||
| 75030844 | Toshiba Piece, Corner Top, Farc55 Schematic Location: E102 | No | ||
| Remote Control | 75030624 | Toshiba Remote Control Hand Unit, Schematic Location: E400 | No | |
| Bracket, Flange, Blade | 75030613 | Toshiba Screw, For Stand (Bracket Schematic Location: E126 | No | |
| Bracket, Flange, Blade | 75030612 | Toshiba Screw, For Stand (Bracket Schematic Location: E125 | No | |
| Speaker | 75028910 | Toshiba Speaker, Pk23010000i Schematic Location: E332 | No | |
| Speaker | 75032586 | Toshiba Speaker, Pk23010002i E332 Schematic Location: E330-1 | No | |
| Speaker | 75028911 | Toshiba Speaker, Pk23010010i Schematic Location: E330 | No | |
| Speaker | 75032585 | Toshiba Speaker, Pk23010012i E330 Schematic Location: E332-1 | No | |
| 75030726 | Toshiba Sponge, 10X10x0.5, Fhrb55 Schematic Location: E180 | No | ||
| 75030732 | Toshiba Sponge, 13X3.5x4, Fhrc55t Schematic Location: E172 | No | ||
| 75030729 | Toshiba Sponge, 20X10x0.5, Fhrc55 Schematic Location: E183 | No | ||
| 75030725 | Toshiba Sponge, 22X22x0.5, Fhrc55 Schematic Location: E179 | No | ||
| 75030722 | Toshiba Sponge, 230X15x13, Fhrb55 Schematic Location: E176 | No | ||
| 75030720 | Toshiba Sponge, 30X15x6, Fhrb55t0 Schematic Location: E174 | No | ||
| 75030727 | Toshiba Sponge, 50X50x1, Fhrc55t0 Schematic Location: E181 | No | ||
| 75030721 | Toshiba Sponge, 60X15x6, Fhrb55t0 Schematic Location: E175 | No | ||
| 75030730 | Toshiba Sponge, 65X10x2, Fhrc55t0 Schematic Location: E184 | No | ||
| 75030724 | Toshiba Sponge, 80X20x12, Fhrb55t Schematic Location: E178 | No | ||
| 75030728 | Toshiba Sponge, 80X3x2.5, Fhrc55t Schematic Location: E182 | No | ||
| 75030723 | Toshiba Sponge, 85X35x2.5, Fhre40 Schematic Location: E177 | No | ||
| Tape | 75031758 | Toshiba Tape Kit, 47L6200u/47l620 Schematic Location: T1 | No | |
| Tape | 75030731 | Toshiba Tape, 380X30x0.25, Lcrb55 Schematic Location: E170 | No | |
| Tape | 75030719 | Toshiba Tape, 60X30x0.25, Lcrb55t Schematic Location: E173 | No | |
| 75030618 | Toshiba Touch Key, 454C3k51l01 Schematic Location: E262 | No | ||
| 75030641 | Toshiba Wire Harness, Mb-ir, Dc02 Schematic Location: E278 | No | ||
| 75030642 | Toshiba Wire Harness, Mb-lvds, Dc Schematic Location: E310 | No | ||
| 75029246 | Toshiba Wire Harness, Mb-pow, Dc0 Schematic Location: E274 | No | ||
| 75030640 | Toshiba Wire Harness, Mb-spk, Dc0 Schematic Location: E272 | No | ||
| Wire | 75030852 | Toshiba Wireless Keyboad, Pk13rb4 Schematic Location: E472 | No |
